Automated Glass Laminating Machine for Flexible PVB/EVA Production

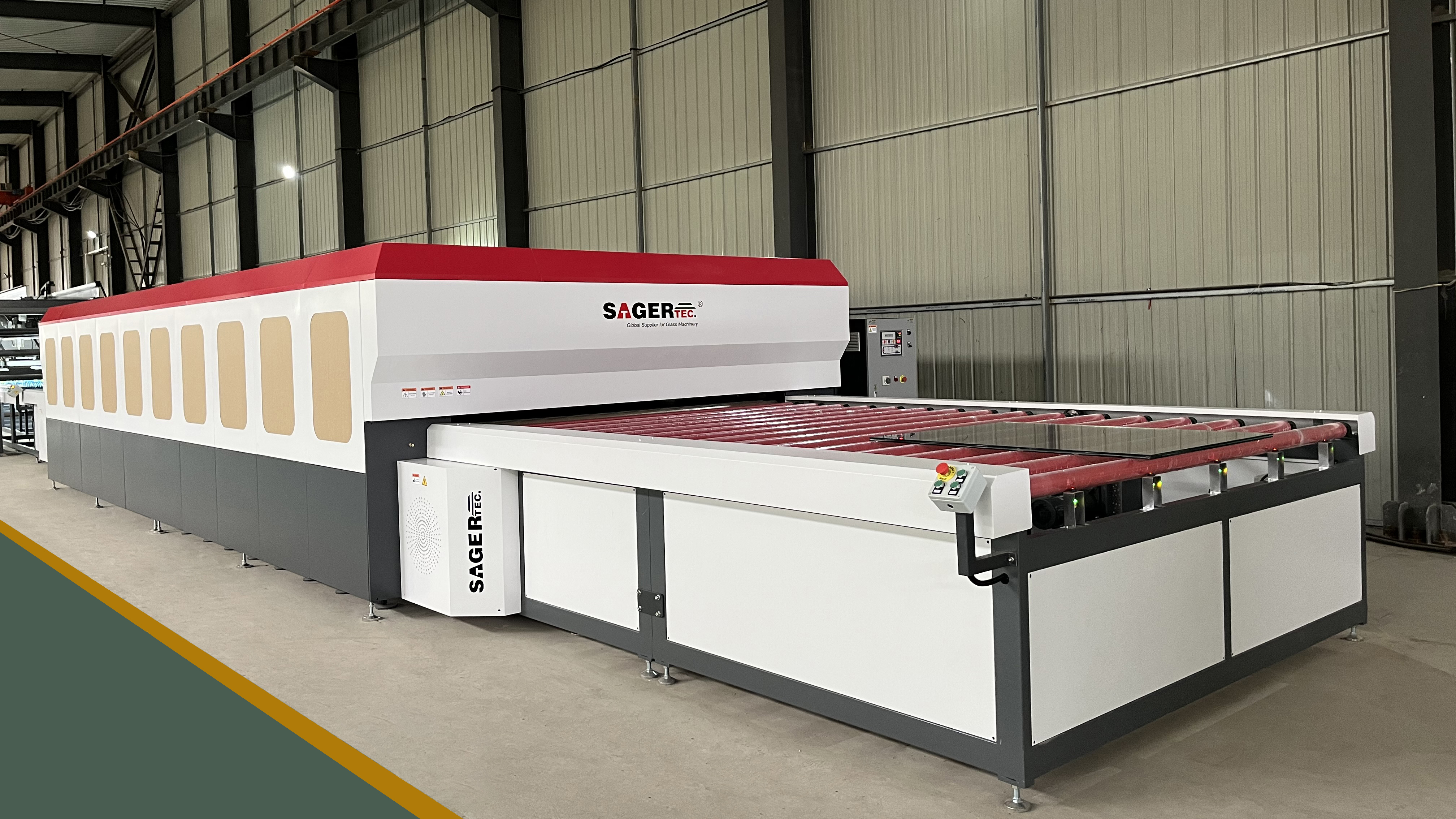

The ALAM Pro PVB/EVA Glass Laminating Machine is an autoclave-free laminated glass line developed for glass processors that require safe operation, flexible production and stable, repeatable lamination quality.
Unlike a traditional laminated glass production line that depends on a separate high-pressure autoclave, the ALAM Pro integrates the main vacuum, heating, conveying and process-control functions into one automated glass laminating system. Removing the high-pressure vessel from the production process simplifies factory planning, reduces system complexity and eliminates the operational risks directly associated with autoclave pressure.
The machine supports both standard PVB film and EVA film, allowing manufacturers to process different laminated glass products on the same equipment. With available configurations for glass sizes up to 5200 × 2600 mm, it is suitable for architectural glass factories, custom glass processors and manufacturers handling a combination of standard, small-batch and single-piece orders.
Designed for high-efficiency manufacturing, the machine completes a full lamination cycle in just a few minutes, helping factories shorten lead times and meet fast delivery demands without compromising consistency. The entire workflow is governed by a fully automated industrial PC control system, providing intuitive operation, clear parameter management, and dependable repeatability—while reducing reliance on highly skilled labor. In addition, the process does not require strict humidity control, avoiding the need for climate-controlled rooms and cutting labor, energy, and operating costs. As a self-contained unit, it can run independently without dependence on extensive auxiliary facilities or equipment, delivering a practical, streamlined solution for modern laminated glass production.
How the Glass Laminating Machine Works
After the glass has been cleaned, assembled with the selected interlayer and placed on the loading section, the prepared glass unit is automatically conveyed into the laminating system.
A stored production recipe coordinates the main process stages, including:
- Automatic glass conveying
- Vacuum extraction
- Controlled heating
- Temperature and process-time management
- Programmed holding stages
- Automatic discharge
Depending on the glass construction, interlayer type, glass size and selected process recipe, an individual lamination cycle can be completed within minutes. Automated parameter execution reduces operator variation and helps maintain consistent results across different shifts and production batches.
Key Features and Advantages
Autoclave-Free Laminated Glass Production
The ALAM Pro completes the laminating process without a traditional high-pressure autoclave. This removes the pressure vessel from the core production process and simplifies equipment installation, operation and production management.
Compatible with Standard PVB and EVA Film
The machine supports commonly used PVB and EVA interlayers, enabling manufacturers to produce different laminated glass constructions and respond flexibly to changing customer requirements.
Compatibility with other interlayer materials can be evaluated according to the film specification and intended application.
Fast Laminating Cycles
Optimized vacuum, heating and automatic conveying processes allow laminated glass units to be processed within minutes under the appropriate production recipe. This helps factories shorten lead times and respond to urgent or mixed-order production requirements.
Actual processing time depends on glass thickness, overall construction, interlayer material, glass size and required product quality.
PLC-Based Automatic Control
The laminated glass machine uses a PLC-based control system with a touchscreen HMI. Operators can select, store and manage production recipes for different glass constructions.
Automatic execution of the selected parameters improves repeatability while reducing dependence on manual adjustment and individual operator experience.
No Dedicated Full-Room Humidity Control
The ALAM Pro is designed to operate without dependence on a dedicated, fully climate-controlled production room. This can reduce facility investment, energy consumption and daily environmental-management requirements.
However, PVB and other interlayers must still be stored and handled according to the film supplier’s instructions. Correct temperature, moisture control, cleanliness and edge protection remain important for reliable laminated glass quality.
Suitable for Batch and Single-Piece Production
The line can process regular production batches as well as individual custom glass units. This flexibility is particularly valuable for factories handling different glass sizes, constructions and order quantities during the same working day.
Standalone and Self-Contained Design
The ALAM Pro can operate as an independent glass laminating machine without requiring a separate high-pressure autoclave or an extensive auxiliary production system. It can also be combined with glass washing, assembly, loading and unloading equipment to form a more complete laminated glass production line.
Reduced Labor and Facility Requirements
Automated conveying and recipe-based process control reduce manual intervention and operator training requirements. The elimination of the autoclave and full-room humidity-control system can also reduce facility complexity, energy demand and overall operating costs.
Product Terminology
Depending on the market, this type of equipment may be described as a laminated glass machine, glass laminating machine, laminated glass furnace or glass lamination furnace.
The ALAM Pro is more accurately defined as an autoclave-free laminated glass line because it integrates vacuum processing, controlled heating, automatic conveying and PLC-based process management within one production system.
Applications
The ALAM Pro laminated glass line can be used for the production of:
- Architectural safety glass
- Laminated doors and partitions
- Balustrade and railing glass
- Canopy and roof glass
- Façade and exterior glazing
- Decorative laminated glass
- Custom-size laminated glass
- Small-batch and project-based glass
- Other PVB- or EVA-laminated glass products
The selected glass construction, interlayer and processing recipe should always comply with the applicable product standards and local safety requirements.
Why Choose the ALAM Pro Laminated Glass Line?
The ALAM Pro combines the flexibility of a glass laminating machine with the automation of an integrated laminated glass production line. It is particularly suitable for manufacturers looking to:
- Produce PVB and EVA laminated glass on one system
- Avoid investment in a high-pressure autoclave
- Reduce dependence on complex auxiliary facilities
- Process mixed orders and custom glass efficiently
- Improve production repeatability
- Reduce manual handling and operator dependence
- Shorten laminated glass delivery times
- Expand production capacity with controlled investment
| Item | Specification |
|---|---|
| Model/Series | ALAM Pro |
| Machine Type | Autoclave-free PVB/EVA laminated glass line |
| Max. Glass Size | 3700*2500mm , 4200*2600mm, 5200*2600mm; customized sizes available upon request |
| Compatible Interlayers | Standard PVB and EVA; other materials subject to technical evaluation |
| Control System | PLC-based control with touchscreen HMI |
| Heating Temperature | Up to approximately 160°C |
| Conveying Speed | 5-10m/min. |
| Working Table Height | Approximately 980 mm |
| Power Supply | Customizable |
| Dimension | 16000*3600*2100mm |
| Production Mode | Batch production and single-piece processing |
* Specifications and overall dimensions may vary according to machine configuration, glass size and customer requirements.
FAQ – PVB/EVA Glass Laminating Machine
1. What is the ALAM Pro glass laminating machine used for?
The ALAM Pro is used to produce laminated glass with standard PVB or EVA interlayers. It integrates vacuum processing, controlled heating, conveying and automatic recipe management without requiring a traditional high-pressure autoclave.
2. Is this a laminated glass machine, furnace or production line?
These terms are used differently in different markets. The ALAM Pro may be called a laminated glass machine, glass laminating furnace or glass lamination machine. Because it integrates several processing stages, it is more accurately described as an autoclave-free laminated glass line.
3. Does this laminated glass line require an autoclave?
No. The ALAM Pro completes the lamination process without a high-pressure autoclave, removing the pressure vessel and its associated operating requirements from the production system.
4. How is it different from a traditional autoclave laminating line?
A traditional system normally requires separate pre-lamination equipment and a high-pressure autoclave. The ALAM Pro uses an integrated vacuum and thermal process, simplifying equipment configuration, factory layout and daily production management.
5. Can it process standard PVB film?
Yes. The machine is designed to process standard PVB film as well as EVA film, provided that the appropriate interlayer, glass preparation and production recipe are used.
6. What glass sizes are available?
The ALAM Pro series is available for maximum glass sizes of 3700 × 2500 mm, 4200 × 2600 mm and 5200 × 2600 mm. customized sizes available upon request. The appropriate configuration can be selected according to the customer’s product range and factory layout.
7. How long does one lamination cycle take?
Under an appropriate recipe, an individual laminated glass unit can be processed within minutes. Actual cycle time depends on glass size, thickness, construction, interlayer material and required quality.
8. Is a humidity-controlled room required?
The machine does not normally require a dedicated, fully humidity-controlled production room. Nevertheless, PVB and other films must be stored and handled according to the interlayer manufacturer’s specifications.
9. Is the process fully automatic?
Yes. The PLC-based control system automatically executes stored process parameters, including conveying, vacuum, heating and timing stages. Operators manage the process through the touchscreen HMI.
10. Can the machine process both batch and custom orders?
Yes. It is suitable for regular batch production, mixed-size orders and single-piece custom glass, providing flexibility for project-based laminated glass manufacturers.
11. Can it operate as a standalone machine?
Yes. The ALAM Pro can operate independently without a separate autoclave. It can also be integrated with washing, assembly, loading and unloading equipment to create a more complete glass laminating line.
12. What information is required to select the right model?
Customers should provide the maximum glass size, glass thickness range, typical laminated glass construction, preferred interlayer, expected daily output, available factory space and power supply. This information allows the most suitable machine configuration to be recommended.
