Cost-Efficient Automated Glass Laminating Machine for PVB Production

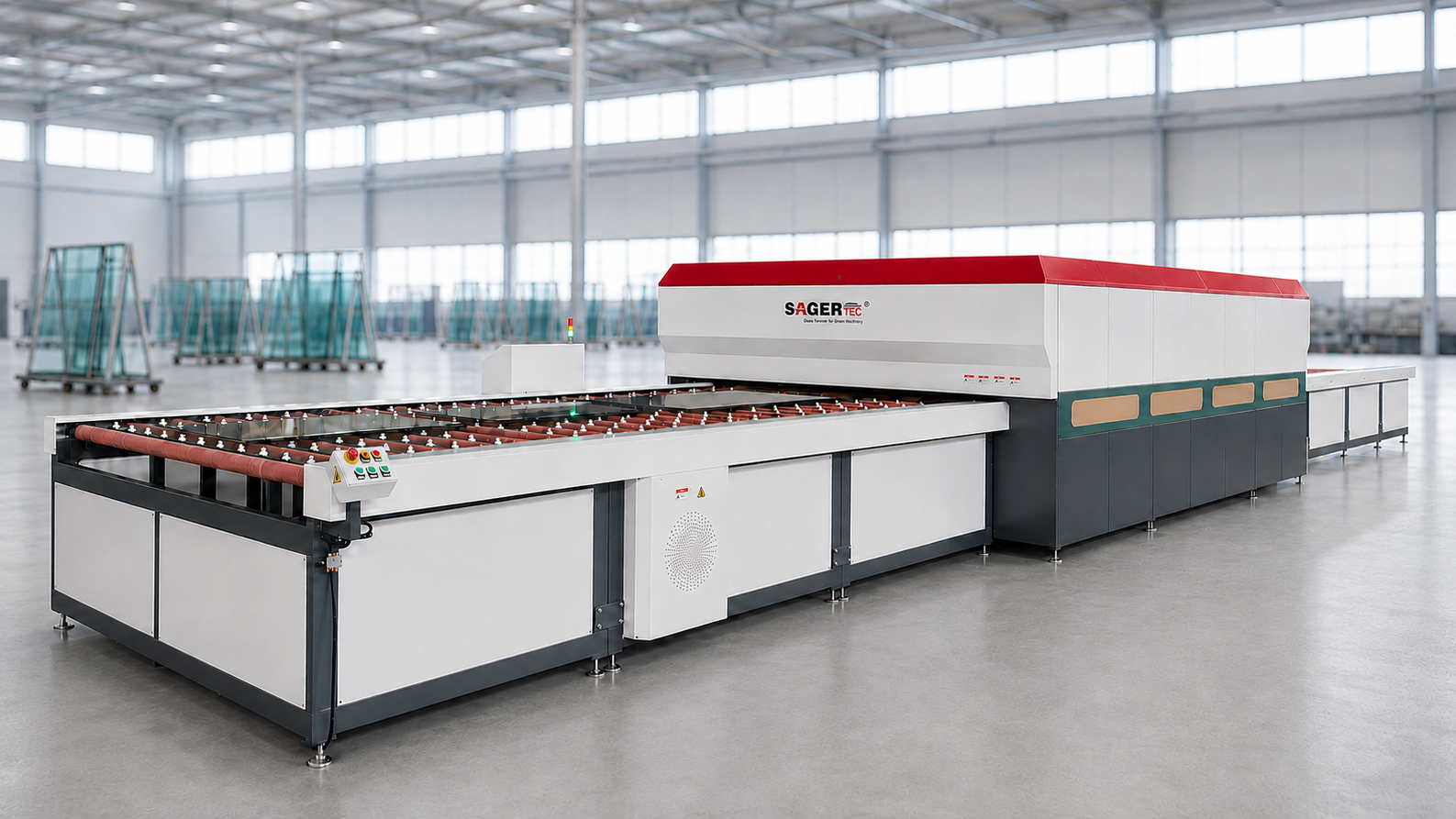

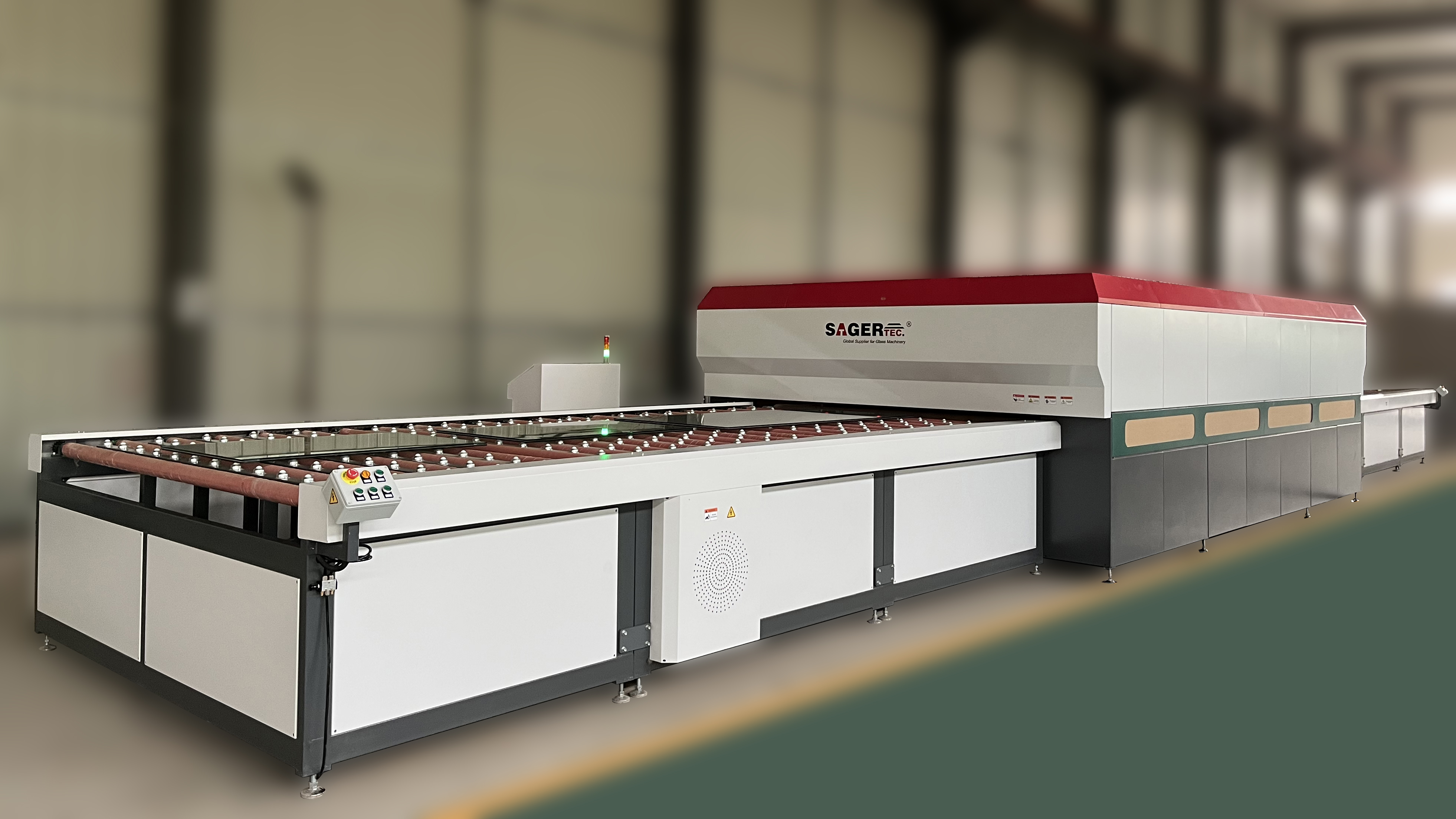

The ALAM Core PVB Glass Laminating Machine is an autoclave-free laminated glass line designed for manufacturers that prioritize automation, reliable process control and capital efficiency.
As the most streamlined model in the ALAM Series, it provides the essential functions required for automated PVB laminated glass production while maintaining a more controlled initial investment. Its production capacity is optimized for factories with moderate output requirements, mixed orders and project-based laminated glass production.
The system integrates vacuum processing, controlled heating, automatic conveying and PLC-based recipe management into one standalone glass laminating machine. Standard configurations are available for glass sizes up to 5200 × 2600 mm, while customized glass sizes and machine configurations can also be supplied according to individual production requirements.
How the ALAM Core Laminated Glass Line Works
After the glass has been cleaned and assembled with PVB interlayer film, the prepared glass unit is placed on the loading section. Once the selected production recipe is started, the glass is automatically conveyed into the laminating system.
The PLC control system coordinates the main processing stages, including:
- Automatic glass conveying
- Vacuum extraction
- Moisture removal from the PVB interlayer
- Controlled heating
- Temperature and processing-time management
- Programmed holding stages
- Automatic glass discharge
The ALAM process is designed to remove moisture absorbed by the PVB film during production. This reduces dependence on a dedicated, fully humidity-controlled production room while helping manufacturers maintain stable and repeatable laminated glass quality.
The actual processing time depends on the glass size, glass thickness, laminated construction, PVB specification and selected production recipe.
Key Features and Advantages
More Controlled Initial Investment
The ALAM Core uses a streamlined machine configuration developed for moderate production requirements. It allows manufacturers to introduce or expand automated PVB laminated glass production without the capital requirements of a higher-output production line.
Automated PVB Laminated Glass Production
Automatic conveying, vacuum processing, heating and recipe execution reduce manual intervention throughout the laminating process. This helps improve production consistency while lowering dependence on highly experienced operators.
Autoclave-Free Lamination
The machine completes PVB glass lamination without a traditional high-pressure autoclave. Removing the pressure vessel from the production system simplifies factory planning, equipment operation and daily production management.
Integrated PVB Moisture Removal
One of the key advantages of the ALAM laminating process is its ability to remove moisture absorbed by PVB film during processing. This function significantly reduces dependence on strict full-room humidity control and helps control moisture-related quality problems.
PLC Control with Touchscreen HMI
The PLC-based control system allows operators to select and manage process recipes through an intuitive touchscreen interface. The system automatically executes the programmed vacuum, temperature, timing and conveying parameters for consistent production results.
Flexible Glass Sizes
Standard machine configurations are available for maximum glass sizes of:
- 3700 × 2500 mm
- 4200 × 2600 mm
- 5200 × 2600 mm
Customized processing sizes are also available according to the customer’s product range, factory layout and production requirements.
Suitable for Mixed Production
The ALAM Core can handle regular batches, mixed-size orders and individual custom glass units. It is particularly suitable for manufacturers whose daily production includes different glass sizes and laminated constructions.
Standalone Machine Configuration
The equipment can operate independently without a separate high-pressure autoclave. It can also be connected to washing, assembly, loading and unloading equipment to create a more complete PVB laminated glass production line.
Reduced Labor and Facility Requirements
Automation reduces manual handling and operator training requirements. The autoclave-free process and reduced dependence on full-room humidity control can also simplify supporting facilities and lower operating costs.
Applications
The ALAM Core glass laminating machine is suitable for producing:
- Architectural safety glass
- Laminated doors and partitions
- Balustrade and railing glass
- Canopy and roof glass
- Façade glazing
- Decorative laminated glass
- Custom-size laminated glass
- Small- and medium-batch project glass
- Other PVB laminated glass products
The glass construction, interlayer selection and finished product should comply with applicable local standards and project requirements.
Choosing Between ALAM Core and ALAM Pro
ALAM Core and ALAM Pro are designed for different production priorities.
ALAM Core is recommended for manufacturers that require automated PVB laminated glass production, moderate production capacity and a more controlled initial investment. Its streamlined configuration provides a practical balance between automation, production flexibility and capital efficiency.
ALAM Pro is intended for manufacturers with higher throughput requirements and more intensive production schedules.
Both models follow the core ALAM autoclave-free process concept and provide automated vacuum, heating, conveying and process-control functions. Model selection should therefore be based primarily on planned output, product range, available factory space and investment requirements.
| Item | Specification |
|---|---|
| Product Series | ALAM Core |
| Machine Type | Autoclave-free PVB laminated glass line |
| Maximum Glass Size | Standard configurations: 3700 × 2500 mm, 4200 × 2600 mm and 5200 × 2600 mm; customized sizes available |
| Interlayer | PVB film |
| Control System | PLC with touchscreen HMI |
| Heating Temperature | 0–160°C |
| Conveyor Speed | 5–10 m/min |
| Working Table Height | 985 ± 10 mm |
| Voltage | Customizable |
| Reference Dimensions | Approximately 12,000 × 3,640 × 2,060 mm |
Machine dimensions and technical specifications may vary according to the selected glass size and customized configuration.
FAQ – ALAM Core PVB Glass Laminating Machine
1. What is the ALAM Core PVB glass laminating machine?
The ALAM Core is an automated, autoclave-free laminated glass line developed for producing PVB laminated glass. It integrates vacuum processing, moisture removal, controlled heating, conveying and PLC-based process management.
2. Who is the ALAM Core designed for?
It is designed for glass processors that want to automate PVB laminated glass production while maintaining a controlled initial investment. It is particularly suitable for factories with moderate output requirements and mixed production orders.
3. Does the ALAM Core require an autoclave?
No. The machine completes the laminating process without a traditional high-pressure autoclave, eliminating the need to install and operate a separate pressure vessel.
4. Can the ALAM Core process standard PVB film?
Yes. The ALAM Core is specifically designed for PVB laminated glass production and can process standard PVB film using the appropriate production recipe.
5. Is a humidity-controlled room required?
A dedicated, fully humidity-controlled production room is normally not required. Through its controlled vacuum and heating process, the ALAM Core is designed to remove moisture absorbed by the PVB film during production.
6. What is the difference between ALAM Core and ALAM Pro?
ALAM Core prioritizes capital efficiency and is optimized for moderate production requirements. ALAM Pro is designed for higher production capacity and more intensive manufacturing schedules. Both use the core ALAM autoclave-free lamination concept.
7. What maximum glass sizes are available?
Standard configurations are available for 3700 × 2500 mm, 4200 × 2600 mm and 5200 × 2600 mm glass. Customized sizes can also be supplied.
8. Is the production process automatic?
Yes. The PLC control system automatically manages conveying, vacuum, heating, timing and other programmed process stages through stored production recipes.
9. How long does one lamination cycle take?
Processing time depends on the glass size, thickness, laminated construction and PVB specification. The automated process is designed to support efficient cycle times and predictable production scheduling.
10. Can the machine handle custom and mixed orders?
Yes. The ALAM Core is suitable for batch production, mixed-size orders and single-piece custom glass, providing flexibility for project-based production.
11. Can the ALAM Core operate independently?
Yes. It can operate as a standalone glass laminating machine without a separate autoclave. It can also be integrated with additional equipment to form a complete PVB laminated glass line.
12. What information is required to select the correct configuration?
Customers should provide their maximum glass size, glass thickness, typical laminated construction, expected production volume, available factory space and power supply. Customized configurations can then be recommended accordingly.
